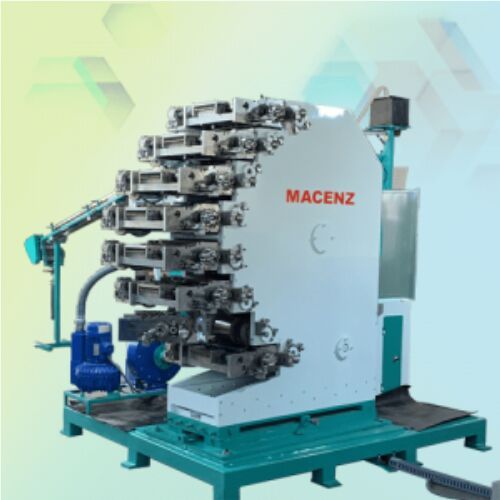

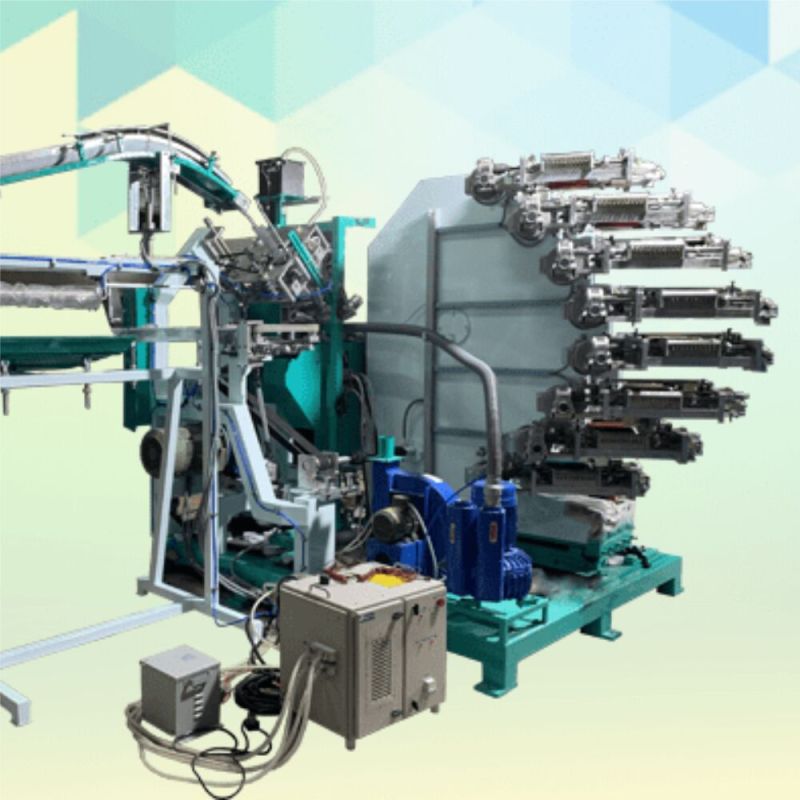

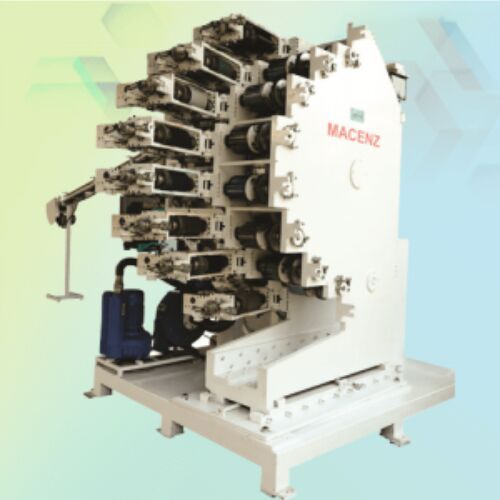

Dry Offset Printing Machine Eight Color


Model No. 5028(G or C) Dry Offset Printing Machine
Send Enquiry

Price : INR 32 Lac - 40 Lac / Piece(s)

Product Details

Product Code Model No. 5028(G or C)
Mode of Container Stock Automatic Mode of Container Loading, Unloading, Counting and Stacking
Automatic Index Speed Range 0 – 250 Steps/minute
Number of Colors 8
Max. Containers Dimensions Dia 150mm/draw – 140mm/tapper 15 Degrees
Max. Printing Length 265mm with 8 Blanket System/440mm with 4 Blanket System
Electricals Requirements Inker Belt Drive-17 Kw/geared Motor Drive-20 Kw
Floor Space 6300 L X 2500 W X 2600 H
Weight Approximately 5000 Kegs Net. 5500 Kegs Gross
Utilities Required Compressed Air 800 Km At 8 Bar
Minimum Order Quantity As Per Client Requirement
